Classic Linker

Product No.0803                                                                                      Order Form

ˇ@



ˇ@

   Product size  : 85mm x 78mm x 25mm      Package size : 130mm x 85mm x 35mm      weight  : 130g

ˇ@

ˇ@

Main features

- Connects PS™/PS2™ and Wii™ Classic controllers to GC™ / Wii™.
- Support PS™ dance mat in Wii™ dancing game.
- Support rumble function.
- Programmable Auto Fire mode included.

Note:
1. #0803 Classic Linker would be recognized as a GC™ controller for GC™ / Wii™ console.
2. In Wii™, GC™ controller (or #0803 Classic Linker) is not workable in Wii™ menu.
3. Supports GC™ controller compatible Wii™ games. For details, please see the manual of the game.
4. It does support Wii™ joystick.

ˇ@

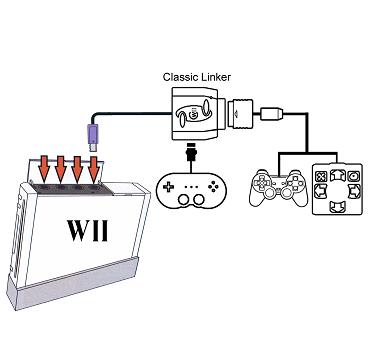

How to use ?

1. Make sure the GC™ / Wii™ console is turned OFF.
2. Connect #0803 Classic Linker to GC™ / Wii™ console.
3. Connect a PS™ / PS2™ / Wii™ Classic controller to #0803 Classic Linker.
4. Turn on the GC™ / Wii™ console, and #0803 Classic Linker would be recognized as a GC™ controller.

Configure auto fire mode :
- hold START, press a button other then START or SELECT, release START. This will enable ˇ§auto fireˇ¨

  for this button. Repeat the above procedure will disable ˇ§auto fireˇ¨ for this button.
- when user press a button with ˇ§auto fireˇ¨ enabled, the LED will keep flashing to indicate that.
ˇ@

Key mapping list

GC™ controller

PS2™ controller

Wii™ Classic controller

Up

Up

Up

Down

Down

Down

Left

Left

Left

Right

Right

Right

Y

Triangle

X

B

Square

Y

A

Cross

B

X

Circle

A

Z

L1 / R1

ZL / ZR

L

L2

L

R

R2

R

START

START / SELECT

START / SELECT

Analog stick (left)

Analog stick (left)

Analog stick (left)

Analog stick (right)

Analog stick (right)

Analog stick (right)

Q&A

Designated trademarks and brands are the property of their respective owners.

#0803 Classic Linker is fully designed and developed  in-house by EMS PRODUCTION LIMITED.

This is not a SONY nor Nintendo official product.
