Model Number : L9-CW / L9-WW                                      Order Form

	Cool White	Warm White					Cool White	Warm White
Model Number	L9-CW	L9-WW		Material			lamp embryo : glass
Description	Down-16W-CW	Down-16W-WW					Body : Aluminum Alloy
Type	Spot Light			Lifetime (hour)			around 30,000 ~ 35,000
Input Voltage	100-240V AC			Dimension (mm)	Outer Diameter		φ174 mm
Power Consumption	16W				Long / Height		82 mm
Light Source Used	15Wx1			Weight (g)			470 g
Luminous Flux Density	800 lm	760 lm		Protection Rating			IP20
Luminous Efficacy	50 lm/w	47 lm/w		Mount			/
Straight down illuminance (1m)	626 lux	600 lux		Dimension diagram
LED Lighting Power	15W
Beam Angle	140°
Color Temperature	5000∼6000K	2800∼3200K
Color Rendering Index (Ra)	＞80			Luminous Intensity Distribution Curve
PFC	>0.5
Operating Temperature	-5∼50℃

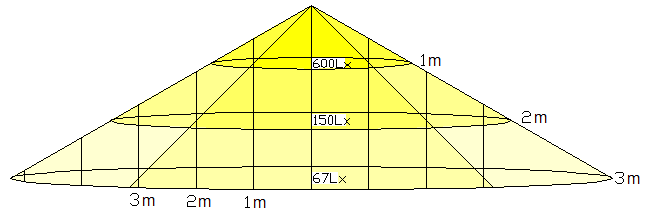

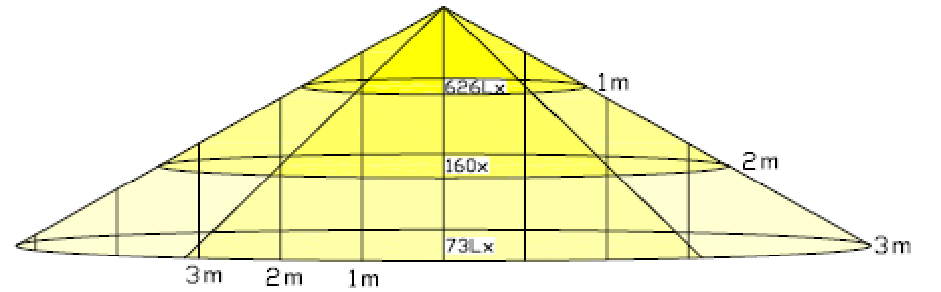

Operating Humidity	10∼95％RH			Illuminance Distribution Diagram
Storage Temperature	-30∼80℃
Storage Humidity	0∼95％RH
