Model Number : L8-CW / L8-WW                                      Order Form



  Cool White Warm White         Cool White Warm White
Model Number L8-CW L8-WW   Material lamp embryo : glass
Description Down-12W-CW Down-12W-WW   Body : Aluminum Alloy
Type Spot Light   Lifetime (hour) around 30,000 ~ 35,000
Input Voltage 100-240V AC   Dimension (mm) Outer Diameter φ174 mm
Power Consumption 12W   Long / Height 82 mm
Light Source Used 10Wx1   Weight (g) 463 g
Luminous Flux Density 550 lm 520 lm   Protection Rating IP20
Luminous Efficacy 46 lm/w 43 lm/w   Mount /
Straight down illuminance (1m) 400 lux 380 lux   Dimension diagram
LED Lighting Power 10W
Beam Angle 140°
Color Temperature 50006000K 28003200K

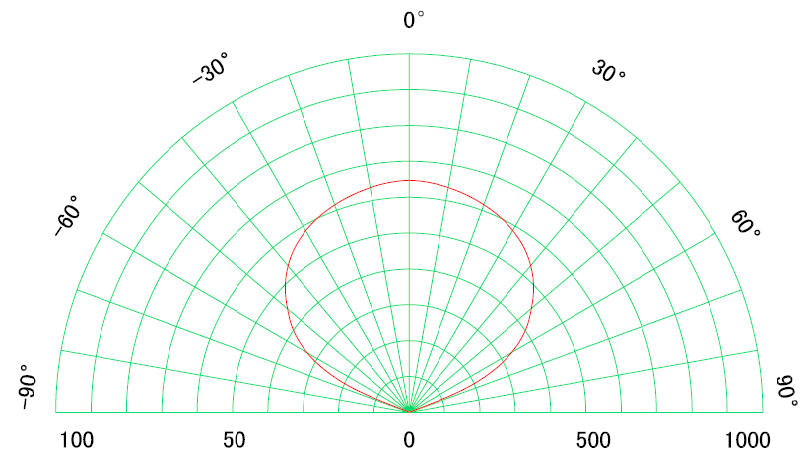

Color Rendering Index (Ra) >80   Luminous Intensity Distribution Curve
PFC >0.5
Operating Temperature -550

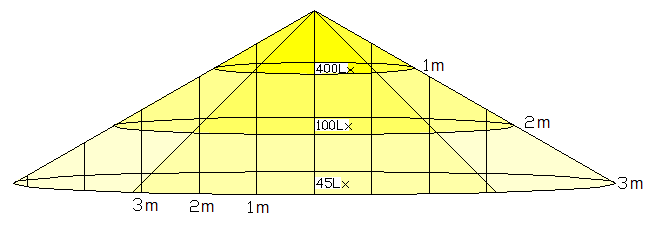

Operating Humidity 1095RH   Illuminance Distribution Diagram
Storage Temperature -3080
Storage Humidity 095RH
