Model Number : L7-CW / L7-WW                                      Order Form


  Cool White Warm White         Cool White Warm White
Model Number L7-CW L7-WW   Material lamp embryo : PMMA
Description PAR38-E27-15W-CW PAR38-E27-15W-WW   Body : Aluminum Alloy
Type Projector Lamp (PAR38)   Lifetime (hour) around 30,000 ~ 35,000
Input Voltage 100-240V AC   Dimension (mm) Outer Diameter φ122 mm
Power Consumption 15W   Long / Height 136 mm
Light Source Used 1W×12   Weight (g) 633 g
Luminous Flux Density 750 lm 650 lm   Protection Rating IP20
Luminous Efficacy 50 lm/w 43 lm/w   Mount E27

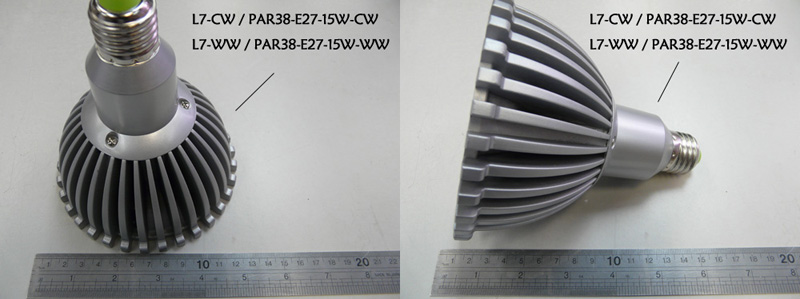

Straight down illuminance (1m) 4000 lux 3600 lux   Dimension diagram
LED Lighting Power 12W
Beam Angle 40°
Color Temperature 50006000K 30004000K

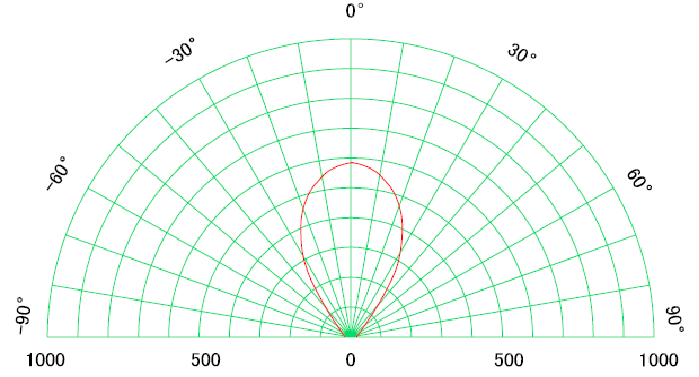

Color Rendering Index (Ra) >70   Luminous Intensity Distribution Curve
PFC >0.5
Operating Temperature -550

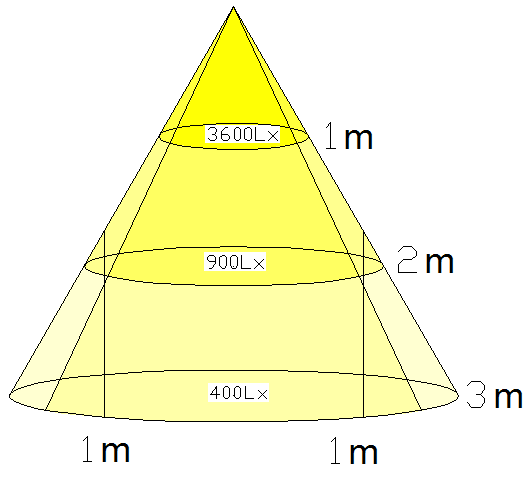

Operating Humidity 1095RH   Illuminance Distribution Diagram
Storage Temperature -3080
Storage Humidity 095RH
