Model Number : L6-CW / L6-WW                                      Order Form

	Cool White	Warm White					Cool White	Warm White
Model Number	L6-CW	L6-WW		Material			lamp embryo : PMMA
Description	PAR20-E27-6W-CW	PAR20-E27-6W-WW					Body : Aluminum Alloy
Type	Projector Lamp (PAR20)			Lifetime (hour)			around 30,000 ~ 35,000
Input Voltage	100-240V AC			Dimension (mm)	Outer Diameter		φ60 mm
Power Consumption	6W				Long / Height		90 mm
Light Source Used	1W×5			Weight (g)			129 g
Luminous Flux Density	400 lm	350 lm		Protection Rating			IP20
Luminous Efficacy	67 lm/w	58 lm/w		Mount			E27
Straight down illuminance (1m)	2100 lux	1700 lux		Dimension diagram
LED Lighting Power	5W
Beam Angle	30°
Color Temperature	5000∼6000K	3000∼4000K

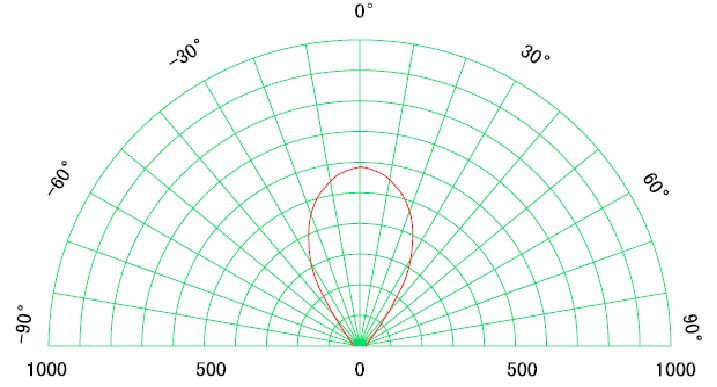

Color Rendering Index (Ra)	＞70			Luminous Intensity Distribution Curve
PFC	>0.5
Operating Temperature	-5∼50℃

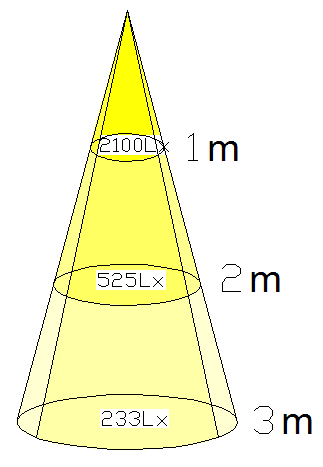

Operating Humidity	10∼95％RH			Illuminance Distribution Diagram
Storage Temperature	-30∼80℃
Storage Humidity	0∼95％RH

Please see Warranty and Customer Notice. For any inquiry, please contact us : sales@hkems.com                            Back to index
