Model Number : L5-WW
Order Form
| Model Number | L5-WW | Material | lamp embryo : glass | ||
| Description | Bulb-E14-3W-WW | Body : Aluminum Alloy | |||
| Type | Electric Bulb (candle) | Lifetime (hour) | around 30,000 ~ 35,000 | ||
| Input Voltage | 100-240V AC | Dimension (mm) | Outer Diameter | φ36 mm | |
| Power Consumption | 3W | Long / Height | 145 mm | ||
| Light Source Used | 3W×1 | Weight (g) | 40 g | ||
| Luminous Flux Density | 120 lm | Protection Rating | IP20 | ||
| Luminous Efficacy | 40 lm/w | Mount | E14 | ||

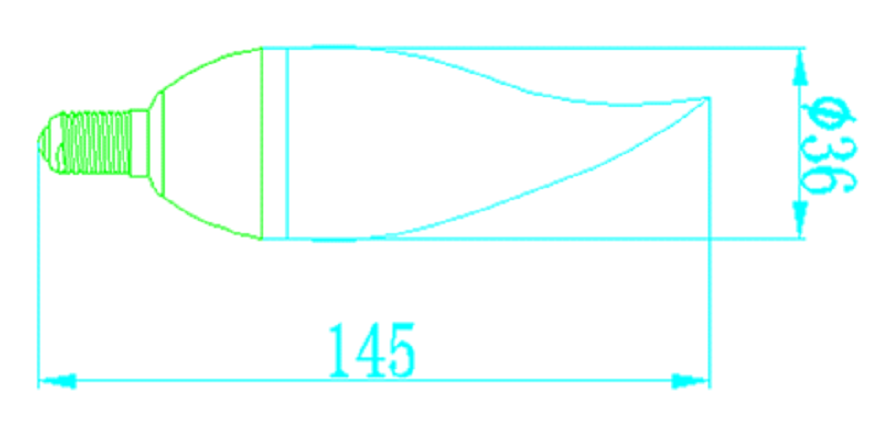

| Straight down illuminance (1m) | 8 lux | Dimension diagram |
 |
||
| LED Lighting Power | 3W | ||||
| Beam Angle | 120° | ||||
| Color Temperature | 3000K (warm white) | ||||

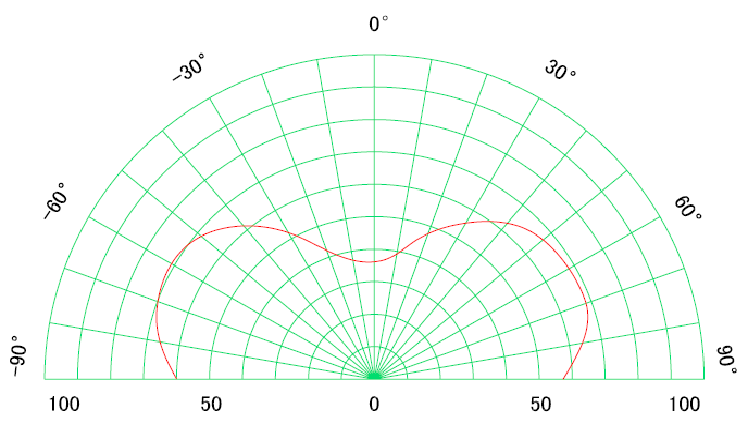

| Color Rendering Index (Ra) | ＞70 | Luminous Intensity Distribution Curve |
 |
||
| PFC | >0.5 | ||||
| Operating Temperature | -5∼50℃ | ||||
| Operating Humidity | 10∼95％RH | Illuminance Distribution Diagram | / | ||
| Storage Temperature | -30∼80℃ | ||||
| Storage Humidity | 0∼95％RH | ||||
Please see Warranty and Customer Notice. For any inquiry, please contact us : sales@hkems.com Back to index
