Model Number : L3-CW / L3-WW                                       Order Form

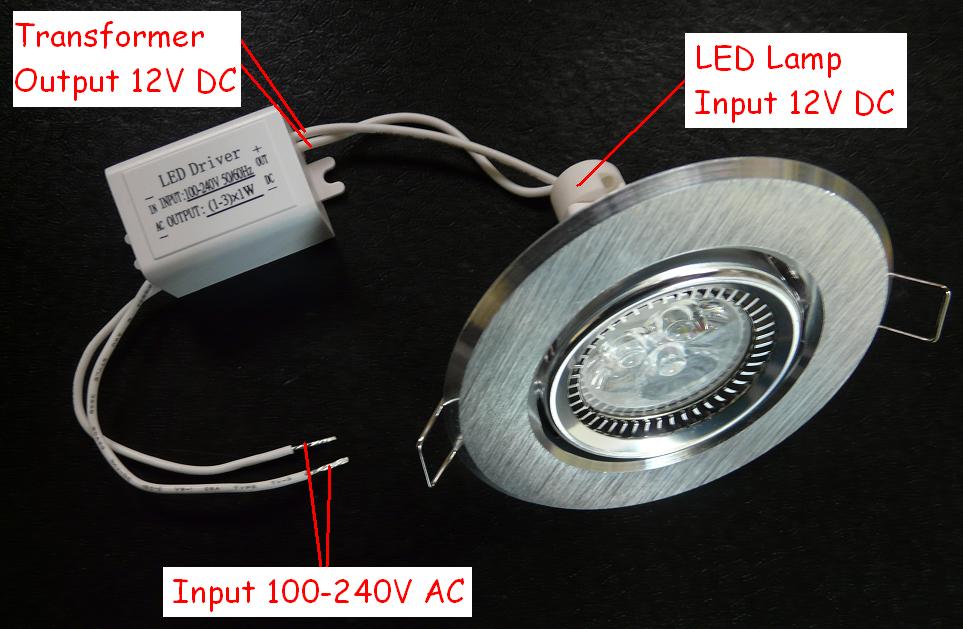

** Transformer is included in the package.

	Cool White	Warm White					Cool White	Warm White
Model Number	L3-CW	L3-WW		Material			lamp embryo : PC (polycarbonate)
Description	MR16-GU5.3-4W-CW	MR16-GU5.3-4W-WW					Body : Aluminum Alloy
Type	Projector Lamp (MR16)			Lifetime (hour)			around 30,000 ~ 35,000
Input Voltage	100-240V AC (Transformer is included in the package)			Dimension (mm)	Outer Diameter		φ50 mm
Power Consumption	4W				Long / Height		52 mm
Light Source Used	1W×3			Weight (g)			164 g
Luminous Flux Density	250 lm	210 lm		Protection Rating			IP20
Luminous Efficacy	60 lm/w	52 lm/w		Mount			GU5.3

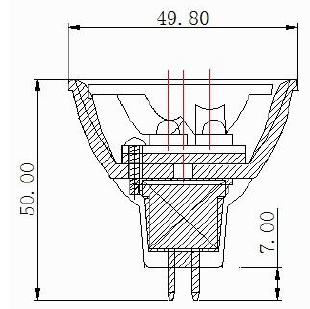

Straight down illuminance (1m)	470 lux	450 lux		Dimension diagram
LED Lighting Power	3W
Beam Angle	30°
Color Temperature	5000∼6000K	3000∼4000K

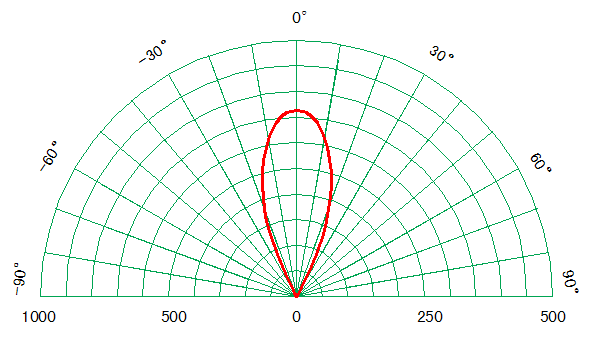

Color Rendering Index (Ra)	＞65			Luminous Intensity Distribution Curve
PFC	>0.5
Operating Temperature	-5∼50℃

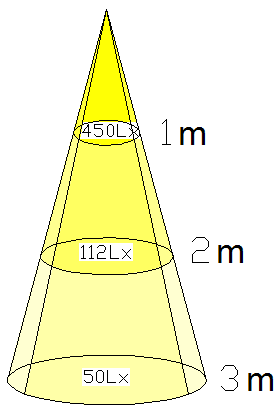

Operating Humidity	10∼95％RH			Illuminance Distribution Diagram
Storage Temperature	-30∼80℃
Storage Humidity	0∼95％RH
