Model Number : L2-CW / L2-WW                                     Order Form

	Cool White	Warm White					Cool White	Warm White
Model Number	L2-CW	L2-WW		Material			lamp embryo : PC (polycarbonate)
Description	Bulb-E27-8W-CW	Bulb-E27-8W-WW					Body : Aluminum Alloy
Type	Electric Bulb (鋁杯口)			Lifetime (hour)			around 30,000 ~ 35,000
Input Voltage	100-240V AC			Dimension (mm)	Outer Diameter		φ62 mm
Power Consumption	8W				Long / Height		118 mm
Light Source Used	0.5W×14			Weight (g)			109 g
Luminous Flux Density	460 lm	430 lm		Protection Rating			IP20
Luminous Efficacy	57 lm/w	53 lm/w		Mount			E27

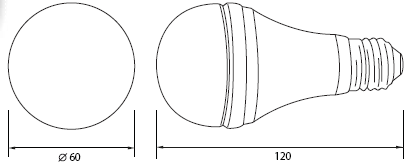

Straight down illuminance (1m)	115 lux	107 lux		Dimension diagram
LED Lighting Power	7W
Beam Angle	120°
Color Temperature	5000∼6000K	3000∼4000K

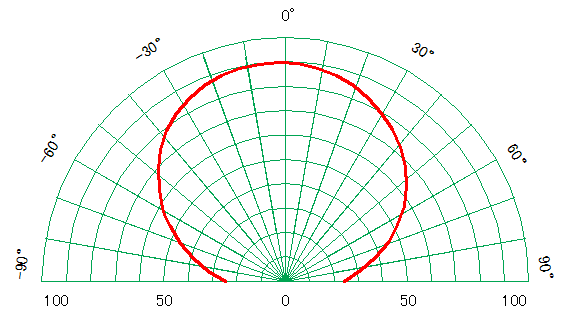

Color Rendering Index (Ra)	＞70			Luminous Intensity Distribution Curve
PFC	>0.5
Operating Temperature	-5∼50℃

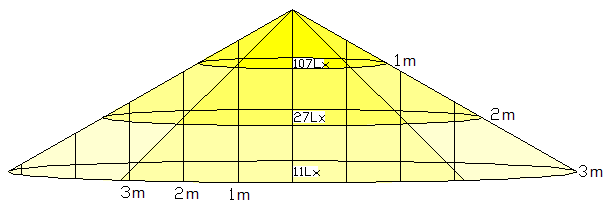

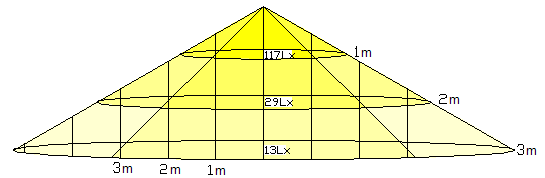

Operating Humidity	10∼95％RH			Illuminance Distribution Diagram
Storage Temperature	-30∼80℃
Storage Humidity	0∼95％RH

Please see Warranty and Customer Notice. For any inquiry, please contact us : sales@hkems.com                            Back to index
