Model Number : L13-CW / L13-WW                                    Order Form

	Cool White	Warm White					Cool White	Warm White
Model Number	L13-CW	L13-WW		Material			lamp embryo : PMMA
Description	MR16-GU10-4W-CW	MR16-GU10-4W-WW					Body : Aluminum Alloy
Type	Projector Lamp (MR16)			Lifetime (hour)			around 30,000 ~ 35,000
Input Voltage	100-240V AC			Dimension (mm)	Outer Diameter		φ50 mm
Power Consumption	4W				Long / Height		57.3 mm
Light Source Used	1W×3			Weight (g)			53 g
Luminous Flux Density	170 lm	150 lm		Protection Rating			IP20
Luminous Efficacy	43 lm/w	38 lm/w		Mount			GU10

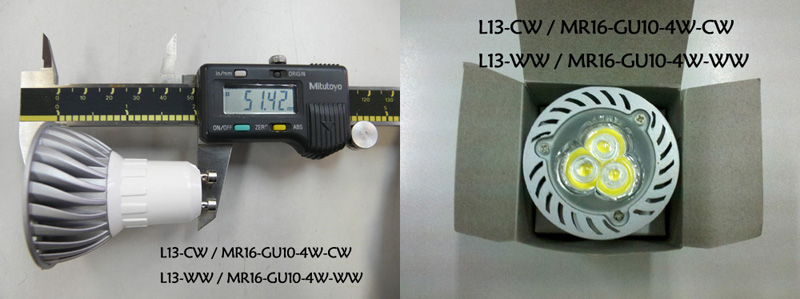

Straight down illuminance (1m)	530 lux	440 lux		Dimension diagram
LED Lighting Power	3W
Beam Angle	40°
Color Temperature	5000∼6000K	3000∼4000K

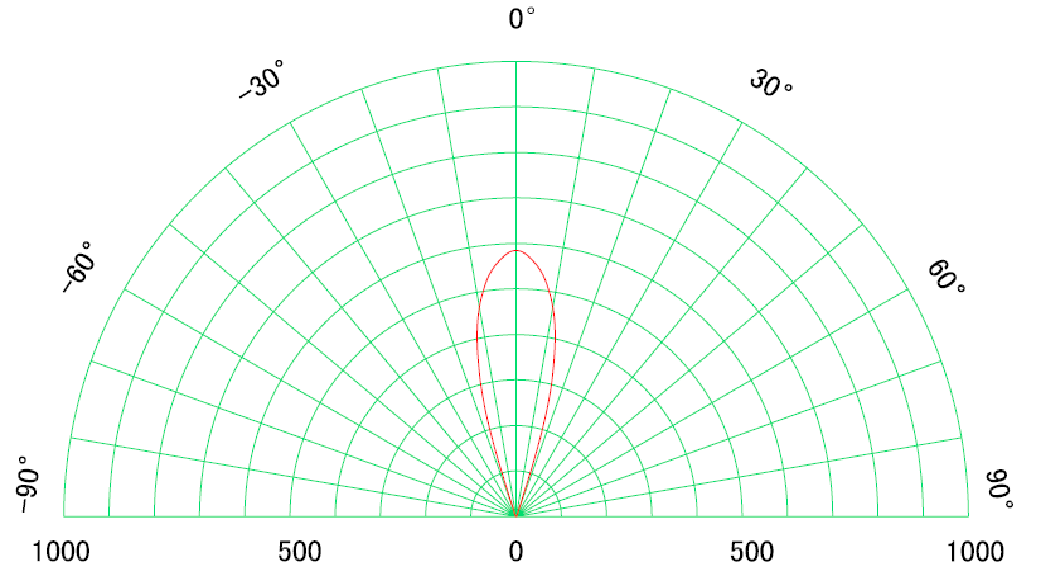

Color Rendering Index (Ra)	＞70			Luminous Intensity Distribution Curve
PFC	>0.5
Operating Temperature	-5∼50℃

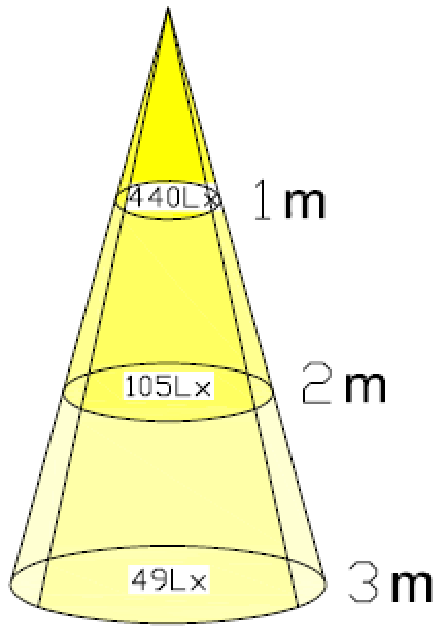

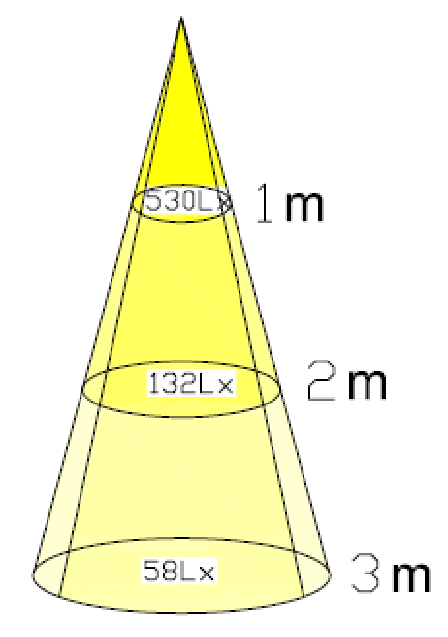

Operating Humidity	10∼95％RH			Illuminance Distribution Diagram
Storage Temperature	-30∼80℃
Storage Humidity	0∼95％RH
