Model Number : L12-CW / L12-WW                                    Order Form


  Cool White Warm White         Cool White Warm White
Model Number L12-CW L12-WW   Material lamp embryo : glass
Description Bulb-E27-7W-CW Bulb-E27-7W-WW   Body : Aluminum Alloy
Type Electric Bulb (鋁擠)   Lifetime (hour) around 30,000 ~ 35,000
Input Voltage 100-240V AC   Dimension (mm) Outer Diameter φ60 mm
Power Consumption 7W   Long / Height 116.5 mm
Light Source Used 1W×5   Weight (g) 147 g
Luminous Flux Density 400 lm 350 lm   Protection Rating IP20
Luminous Efficacy 57 lm/w 50 lm/w   Mount E27

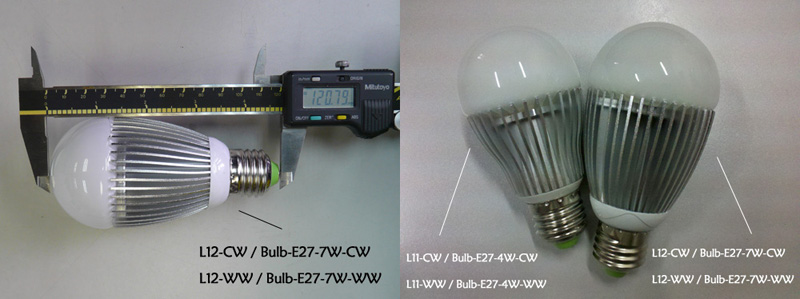

Straight down illuminance (1m) 80 lux 76 lux   Dimension diagram
LED Lighting Power 5W
Beam Angle 120°
Color Temperature 50006000K 30004000K

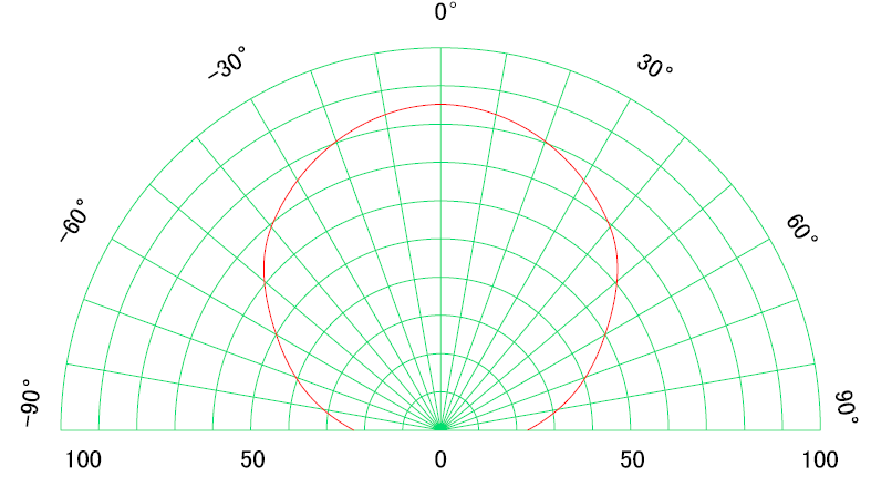

Color Rendering Index (Ra) >70 >75   Luminous Intensity Distribution Curve
PFC >0.5
Operating Temperature -550

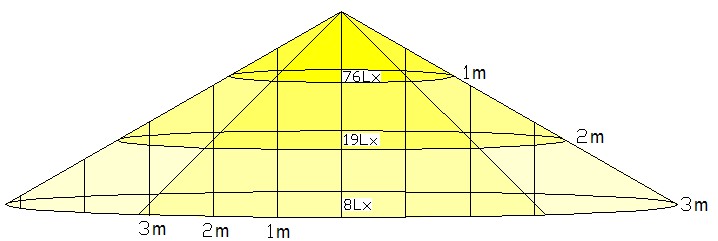

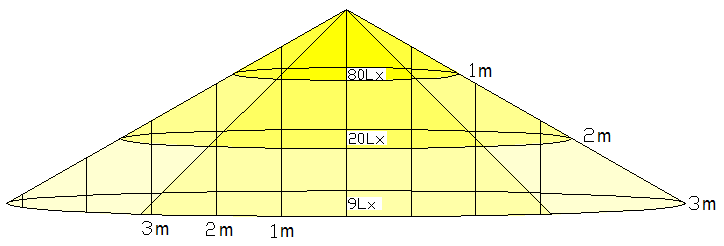

Operating Humidity 1095RH   Illuminance Distribution Diagram
Storage Temperature -3080
Storage Humidity 095RH
