Model Number : L11-CW / L11-WW                                    Order Form

	Cool White	Warm White					Cool White	Warm White
Model Number	L11-CW	L11-WW		Material			lamp embryo : glass
Description	Bulb-E27-4W-CW	Bulb-E27-4W-WW					Body : Aluminum Alloy
Type	Electric Bulb (鋁擠)			Lifetime (hour)			around 30,000 ~ 35,000
Input Voltage	100-240V AC			Dimension (mm)	Outer Diameter		φ56 mm
Power Consumption	4W				Long / Height		108 mm
Light Source Used	1W×3			Weight (g)			87 g
Luminous Flux Density	240 lm	210 lm		Protection Rating			IP20
Luminous Efficacy	60 lm/w	53 lm/w		Mount			E27
Straight down illuminance (1m)	40 lux	35 lux		Dimension diagram
LED Lighting Power	3W
Beam Angle	120°
Color Temperature	5000∼6000K	3000∼4000K

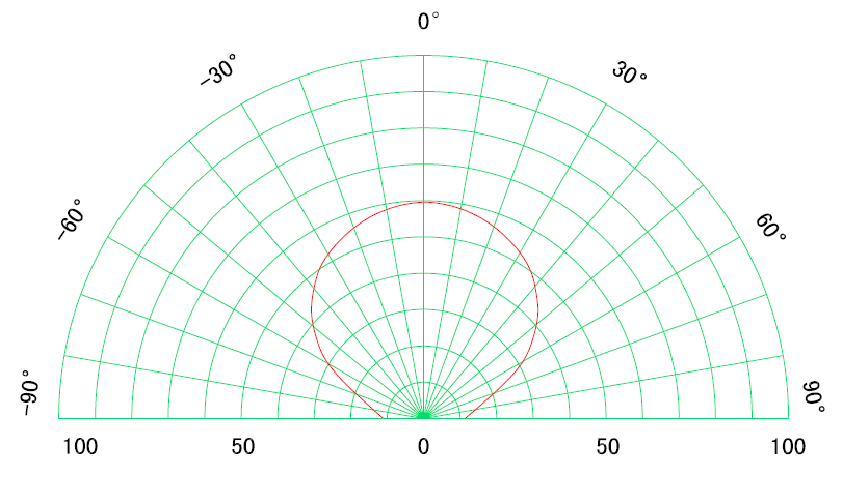

Color Rendering Index (Ra)	＞70	＞75		Luminous Intensity Distribution Curve
PFC	>0.5
Operating Temperature	-5∼50℃

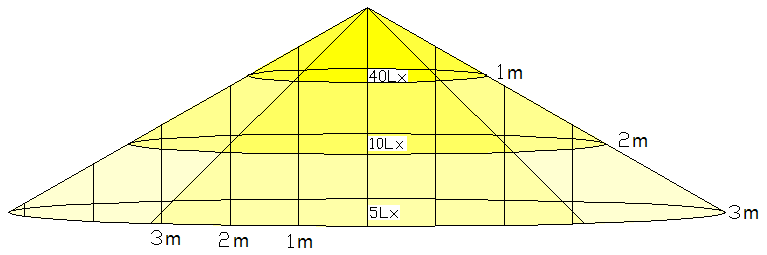

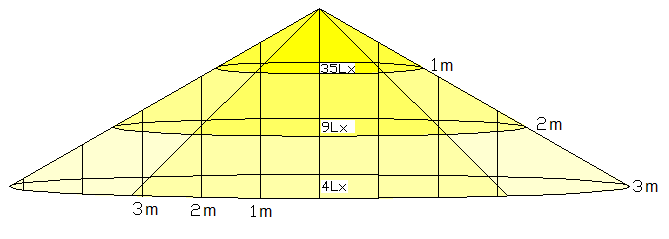

Operating Humidity	10∼95％RH			Illuminance Distribution Diagram
Storage Temperature	-30∼80℃
Storage Humidity	0∼95％RH
