Model Number : L10-CW / L10-WW                                    Order Form


  Cool White Warm White         Cool White Warm White
Model Number L10-CW L10-WW   Material lamp embryo : PC (polycarbonate)
Description Ceiling-15W-CW Ceiling-15W-WW   Body : Plastic
Type Ceiling Light   Lifetime (hour) around 30,000 ~ 35,000
Input Voltage 100-240V AC   Dimension (mm) Outer Diameter φ310 mm
Power Consumption 15W   Long / Height 92 mm
Light Source Used 0.5W×27   Weight (g) 762 g
Luminous Flux Density 780 lm 700 lm   Protection Rating IP20
Luminous Efficacy 52 lm/w 47 lm/w   Mount /

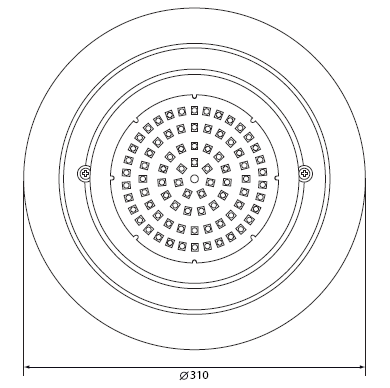

Straight down illuminance (1m) 260 lux 230 lux   Dimension diagram
ED Lighting Power 13.5W
Beam Angle 140°
Color Temperature 50006000K 30004000K

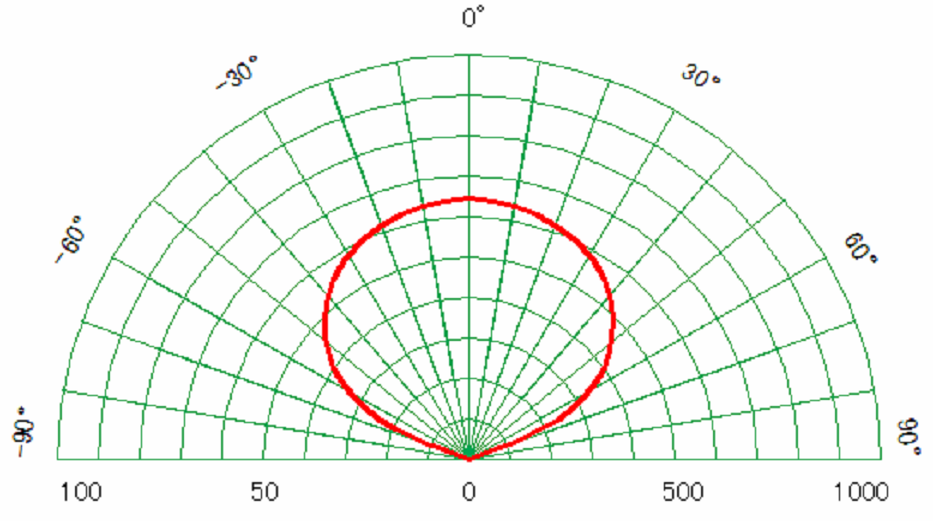

Color Rendering Index (Ra) >70   Luminous Intensity Distribution Curve
PFC >0.5
Operating Temperature -550

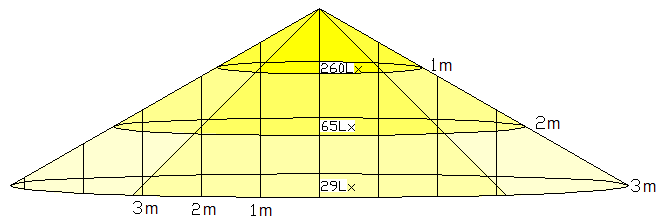

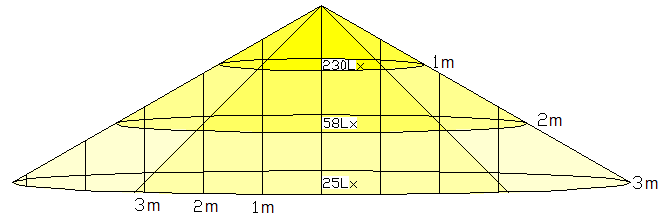

Operating Humidity 1095RH   Illuminance Distribution Diagram
Storage Temperature -3080
Storage Humidity 095RH
